Home > All Barriers > Arm Barriers > Heavy Duty Swing Gate

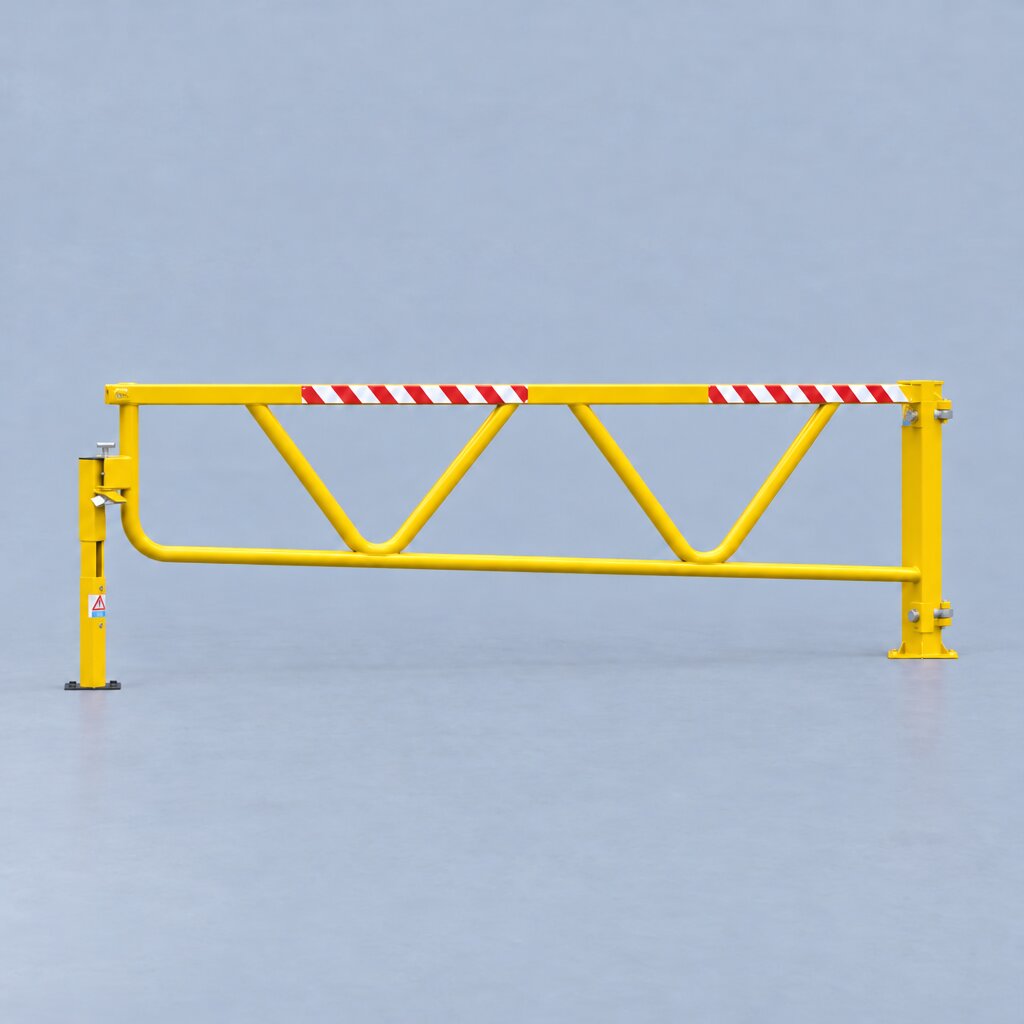

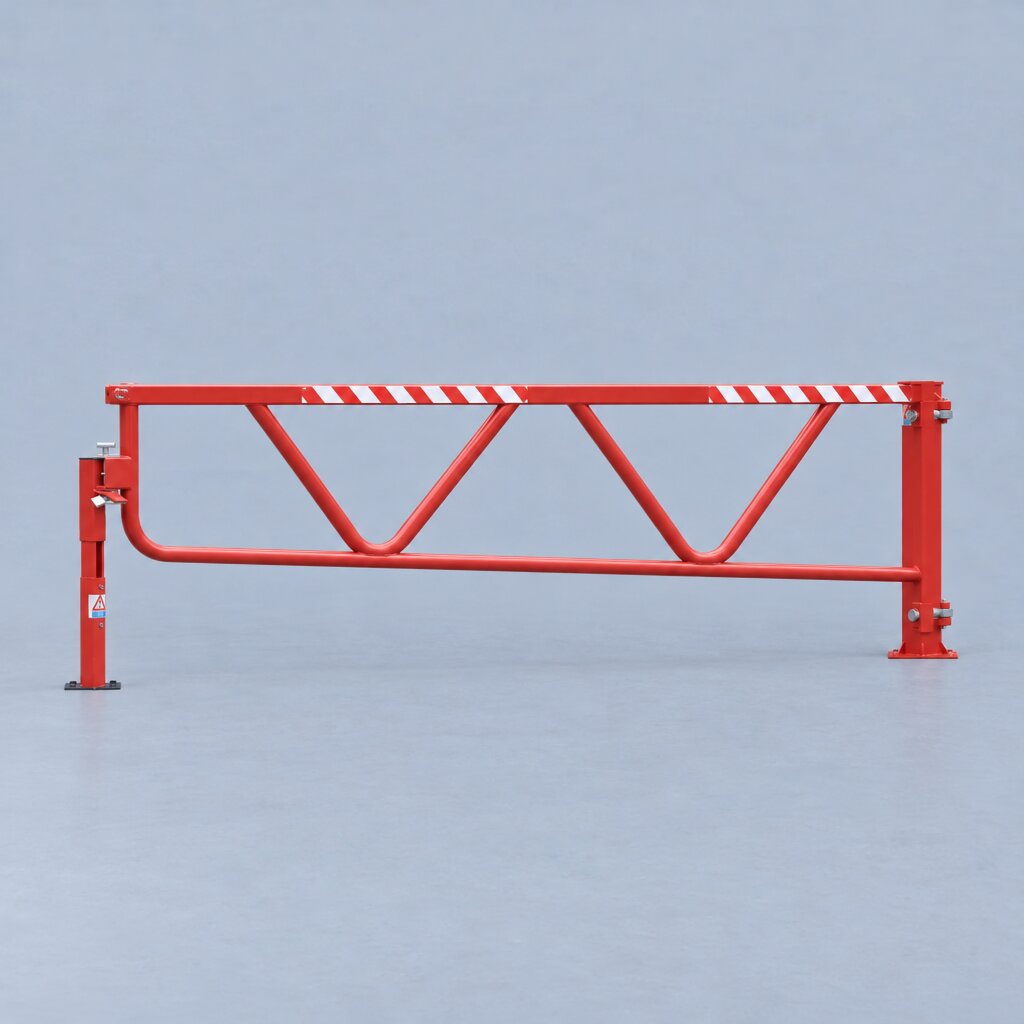

Heavy Duty Swing Gate

Lockable site entrance gate, 3m to 7m

£1,482.00

inc. VAT, £1,235.00 excl. VAT

Free UK Delivery

12-Month Warranty

4.8 |

Fixing

Bolt-down

Concrete-in

Length 3m 4m 5m 6m 7m

ColourRed

Quantity	Discount %	Unit price
1 - 2	-	£1,482.00
3 - 6	5%	£1,407.90
7+	10%	£1,333.80

Discounted prices, unit prices and add-on proces all include VAT.

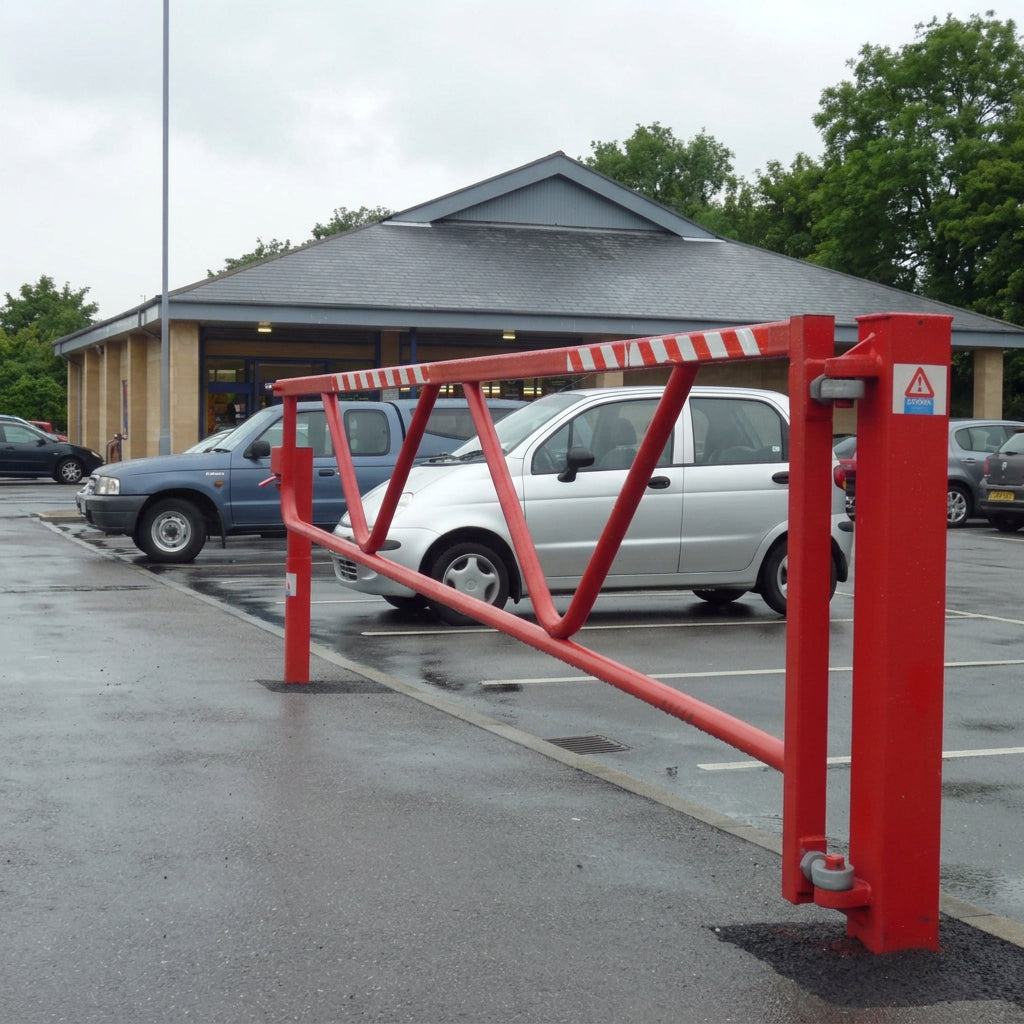

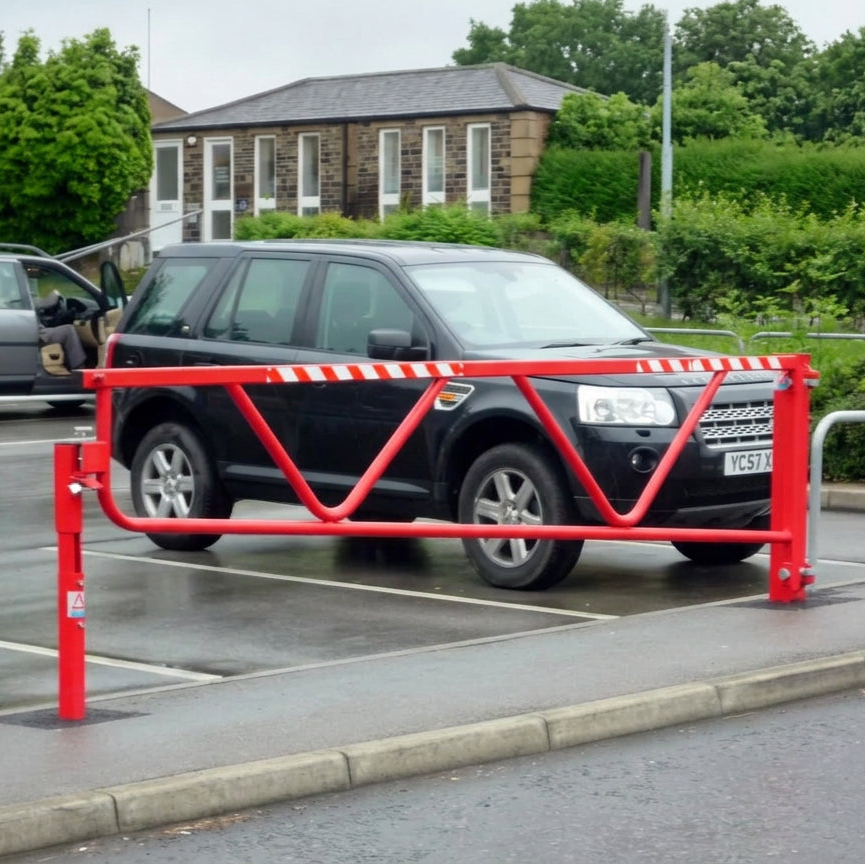

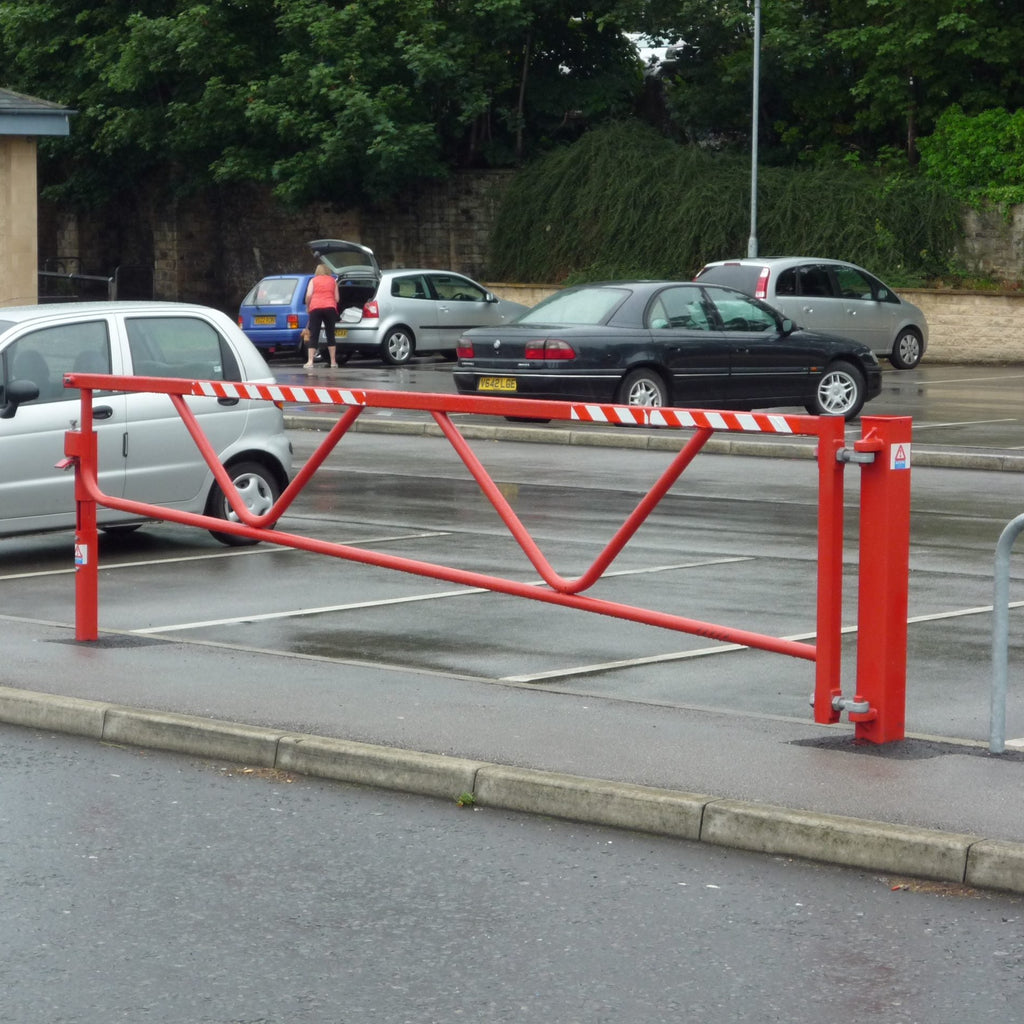

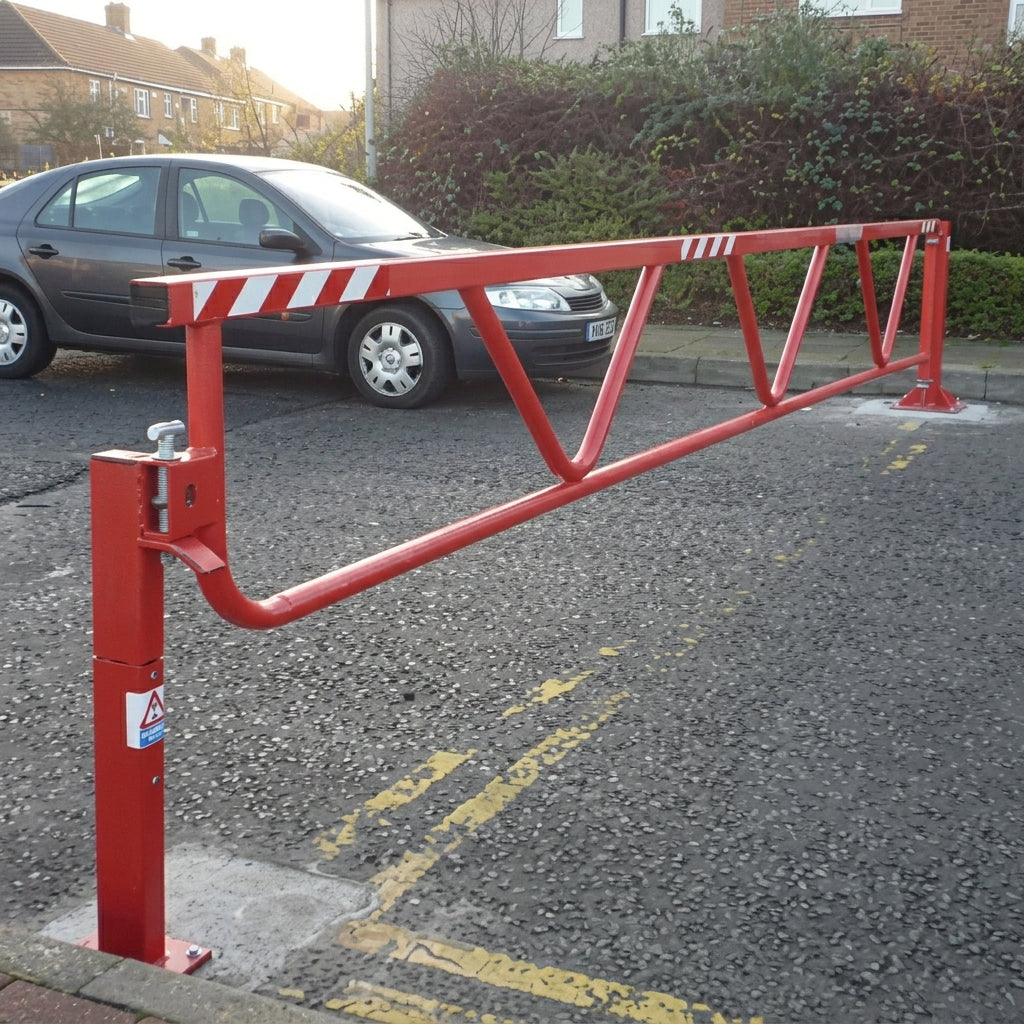

This heavy-duty swing gate secures car parks, commercial premises, and industrial site entrances. It is ideal where access needs to be restricted at certain times, such as overnight or outside working hours.

The gate is manually operated and has several built-in safety features. A self-latching catch post holds it shut, while a short leading edge and low bottom edge reduce the risk of it swinging open unexpectedly or causing injury if it does. It can be locked in both the open and closed positions using a second catch post and padlock, available separately.

Made in Britain from galvanised mild steel, the gate stands 1090mm tall and has a 120mm square main body with a 60mm square arm. It is coated red as standard, with other colours available on request. Single gates come in lengths from 3m to 7m, and double gates can cover wider roads. Please contact us for double gate pricing.

Choose a flanged version to bolt down onto concrete, or a ragged version to cast into the ground.

Specification sheet

Gate Length: 3m, 4m, 5m, 6m, or 7m (single gate)
Overall Height: 1090mm above ground
Hinge Post Height: 1078mm above ground
Catch Post Height: 831mm above ground
Main Body: 120mm x 120mm square tube
Gate Arm: 60mm x 60mm square tube
Catch Post: 90mm x 50mm tube
Wall Thickness: 3mm
Material: Galvanised mild steel
Finish: Red as standard (other RAL colours on request)
Locking: Open and closed positions (second catch post and padlock sold separately)
Safety Features: Self-latching catch post, short leading edge, low bottom edge
Options: Double gates for wider roads, custom colours
Manufactured: UK

FREE UK MAINLAND DELIVERY

Once your order is placed, you’ll receive an email containing your order confirmation number and VAT invoice.

Orders can typically be amended or cancelled within 24 hours of purchase. Contact our team and we’ll be happy to help.

Unused items in their original packaging can be returned within 14 working days by emailing sales@bisonsecurityposts.co.uk or calling 01708 956833. Cancellations and amendments must be made within 24 hours of placing your order.

Each order is carefully packaged to ensure it arrives in excellent condition. If anything is damaged during transit, please report it within 24 hours of receipt. All products come with a 12-month manufacturer’s warranty, and your statutory rights remain unaffected.

Foundation: Recommended concrete base of 600mm x 600mm x 500mm
Flanged (Bolt Down): 4 x M16 bolts per gate base, 4 x M12 bolts per catch post
Ragged (Concrete In): Hinge post set 600mm below ground, catch post set 400mm below ground

Our fully insured team installs various security products throughout London and the South East, with fitting elsewhere in the UK available via approved subcontractors.

As each site and product has different requirements, please contact us directly to receive an installation quote.
